Conductor SA2.6 + Dana Dolly Integration

The Conductor SA2.6 is a powerful motion controller for videographers, filmmakers, multicamera studios, and houses of worship. If you already own a DJI RS2, RS3, or RS4 gimbal, you can now easily combine it with linear motion and turntables to accomplish common motion control tasks like automated interviews controlled product shots, and even control multi-position camera moves over a network.

Don't have a DJI gimbal? Need to move a PTZ or heavyweight camera (up to 40lbs) while coordinating pan to maintain proper framing? Check out the Conductor SA2.6 + Dana Dolly Integration + Rotator bundle.

What's Included

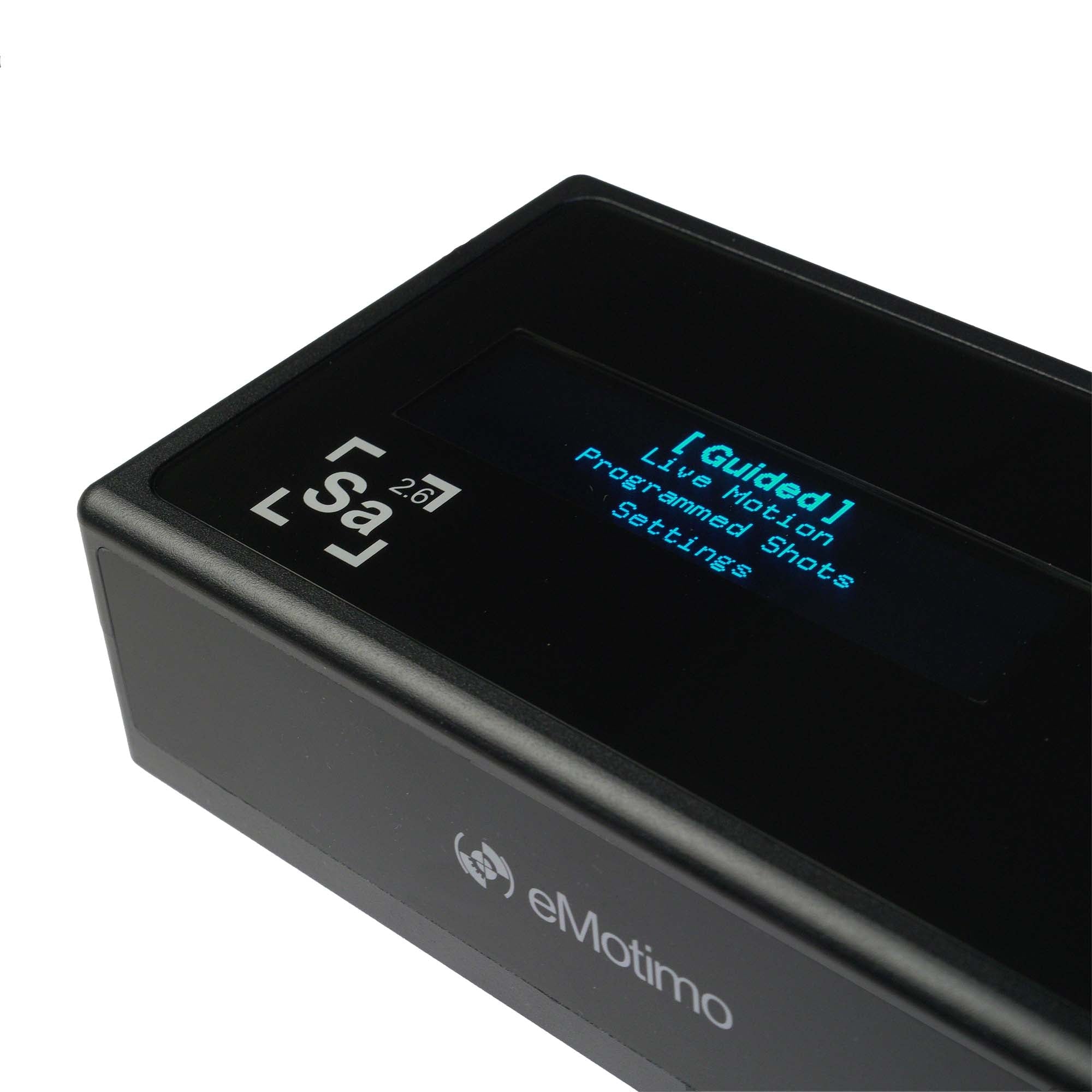

1) Conductor SA2.6 8-axis motion controller
2) Dana Dolly Beltless Integration Kit
3) eMotimo RSI - Connects to DJI RS gimbals for Conductor control
4) Soft Case for Conductor SA2.6
5) AC Power - 12 volt DC adapter
6) Micro SD Card/Instructions
7) Wireless PS5 gaming controller

What's not included:

1) Dana Dolly, Stands, Rail
2) Focus Motor - We recommend you pair your SA2.6 to Tilta Nucleus M motors as they are fast, powerful, and inexpensive. Can be programmed in with or without Tilta Hand Controller.
3) DJI RS2/RS3/RS4 gimbal

Controller:

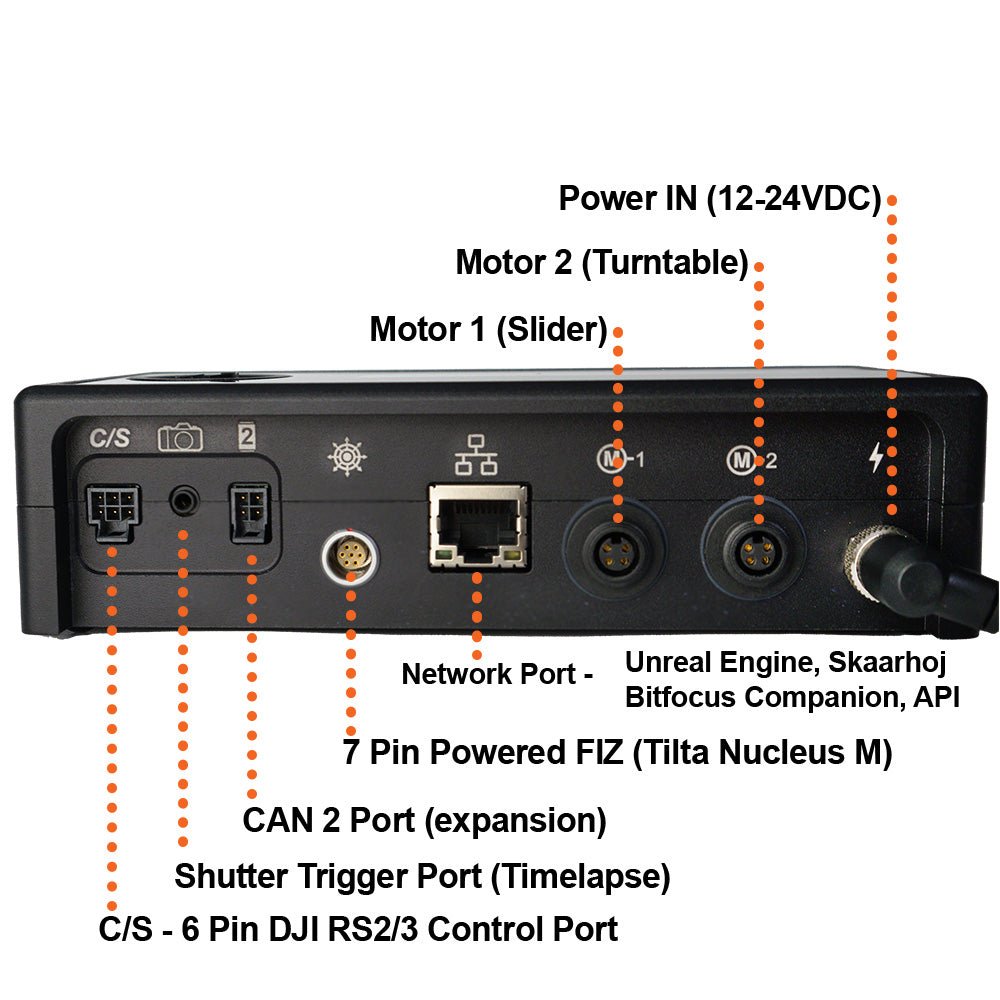

SA2.6 - 8 axis motion controller - M1/M2 powered motor ports, DJI RS Pan/Tilt/Roll/(optional DJI focus motor) control, and up to 3 aftermarket Tilta Nucleus M Motors.

Camera Payload:
- Up to 10 lbs on a gimbal (gimbal limited)
- Up to 40 lbs without gimbal

Slider speed: Up to 1 foot /second - slow as you need

Powering specs: 12-24V DC. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive.

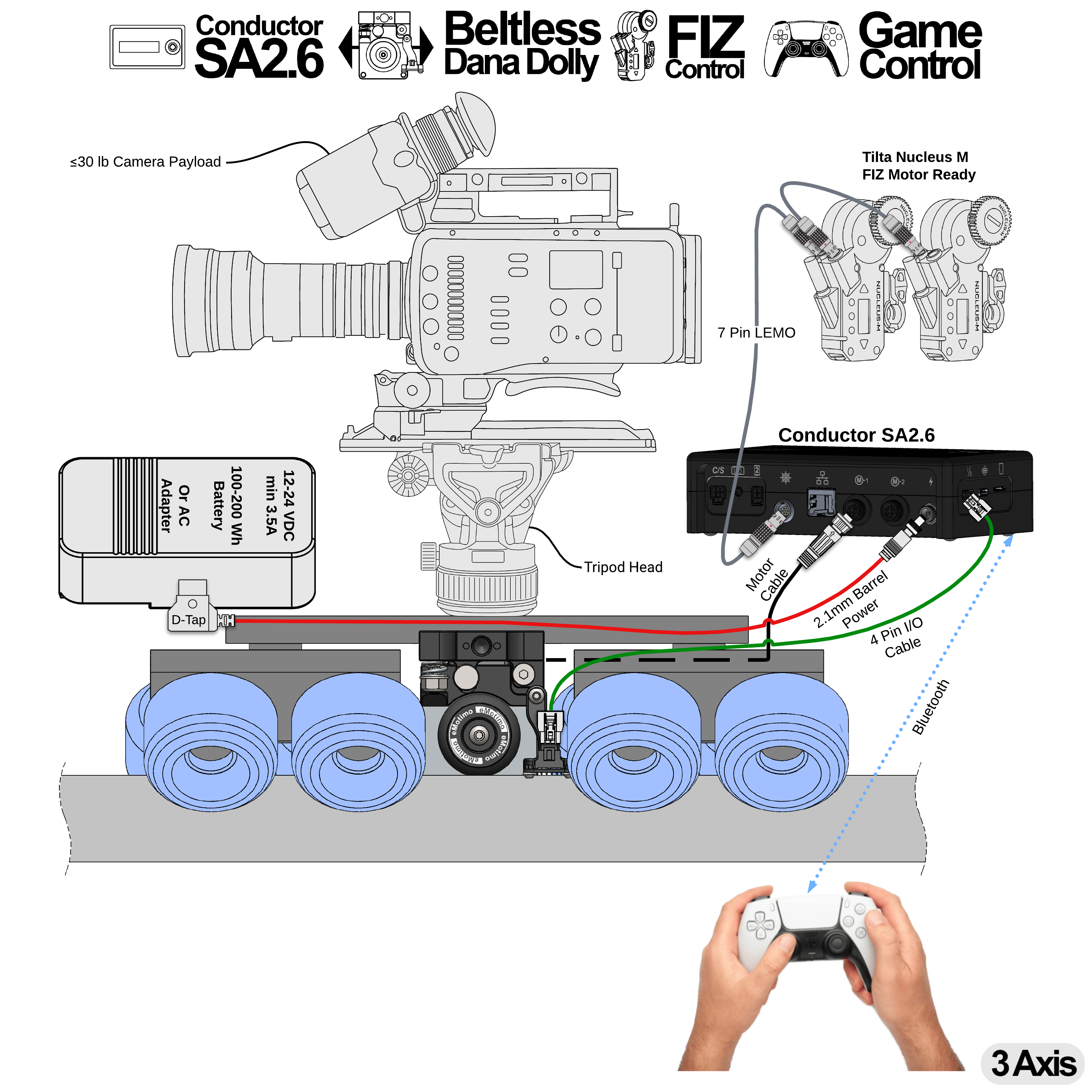

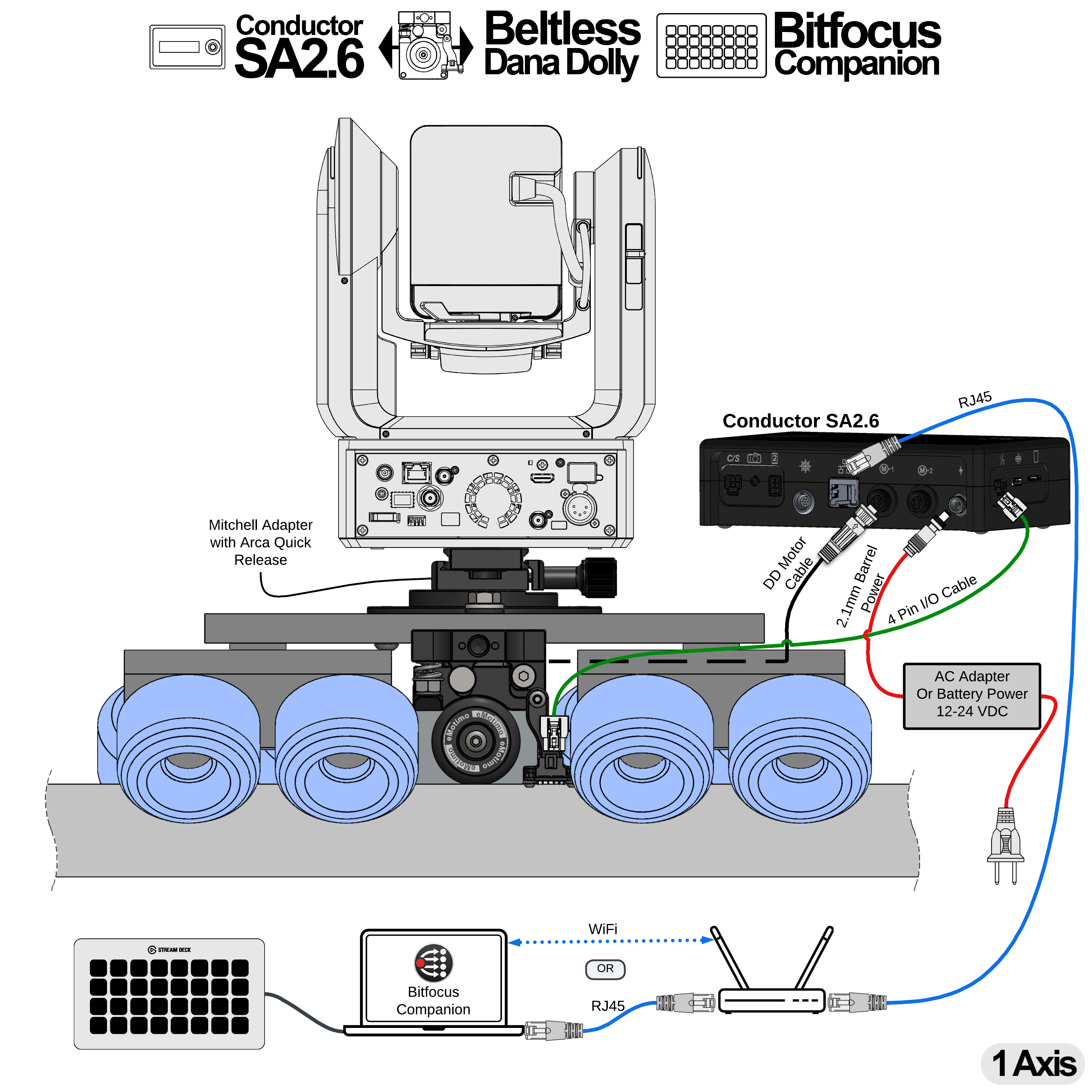

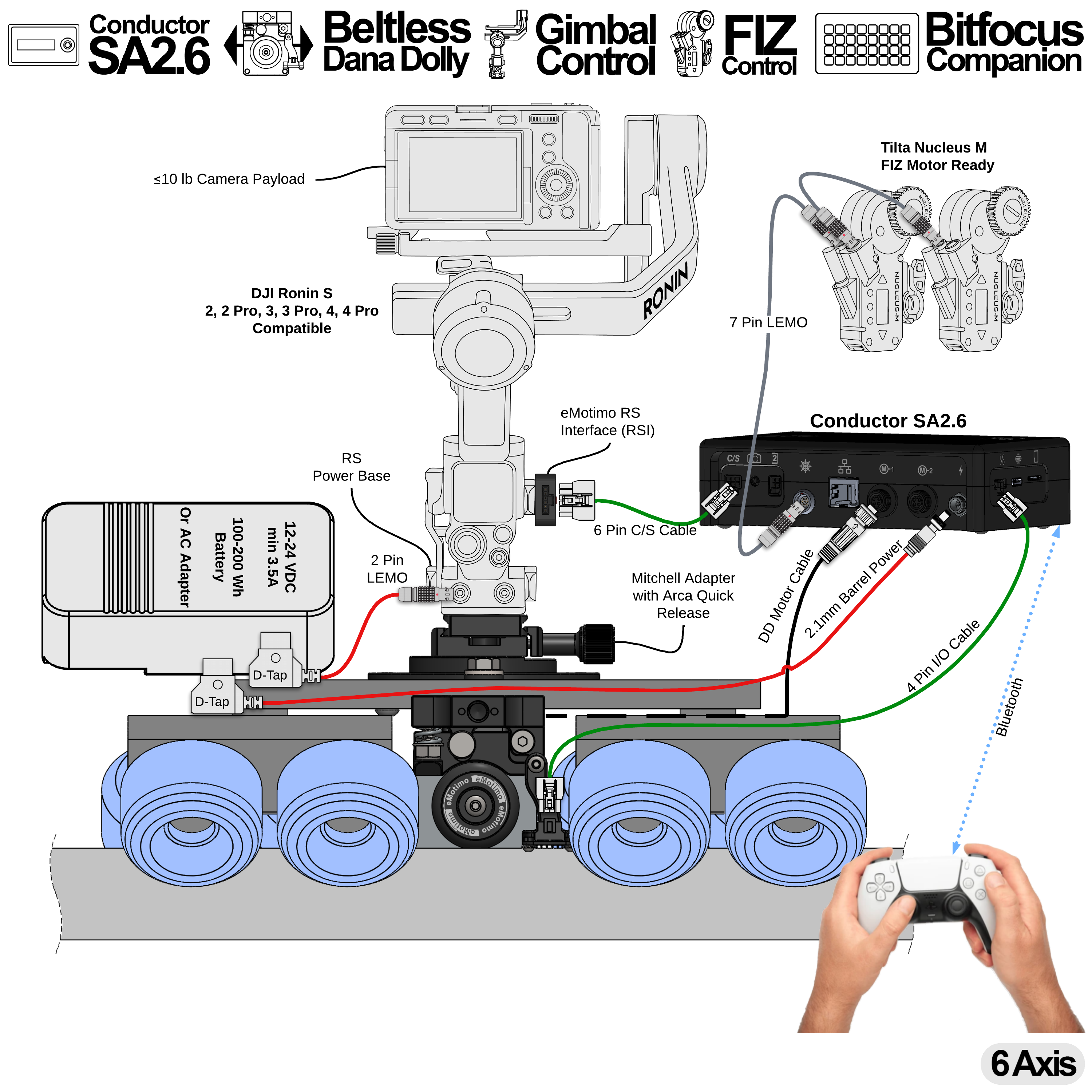

See how this kit connects together - Architecture A11

Beltless Dana Dolly Integration Kit Compatibility Guide - Is your Dana Dolly compatible?

Conductor SA2.6 Instruction Manual

Beltless Dana Dolly Quick Start Guide
