Summary
Connect your eMotimo spectrum ST4.3 motion control head to a Dana Dolly for live control, loops, and preset recall with mid-sized cinema cameras. All motors are powered and controlled from the ST4.3 motion control head and controller. Great for run and gun interview shooting, single pass product shots, and many more applications.

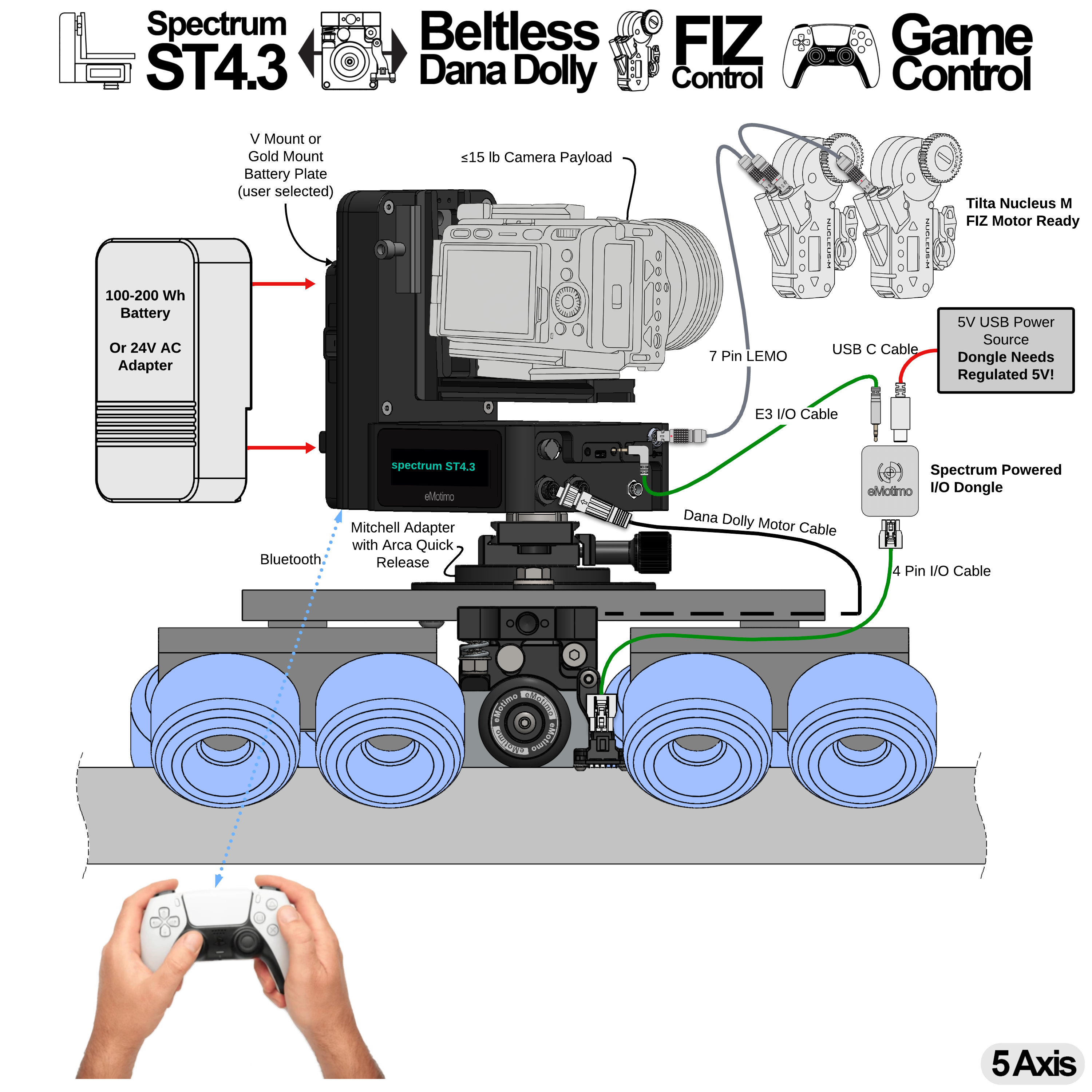

A10.1: Turn Any Camera into a PTFZ + Slide
Features:

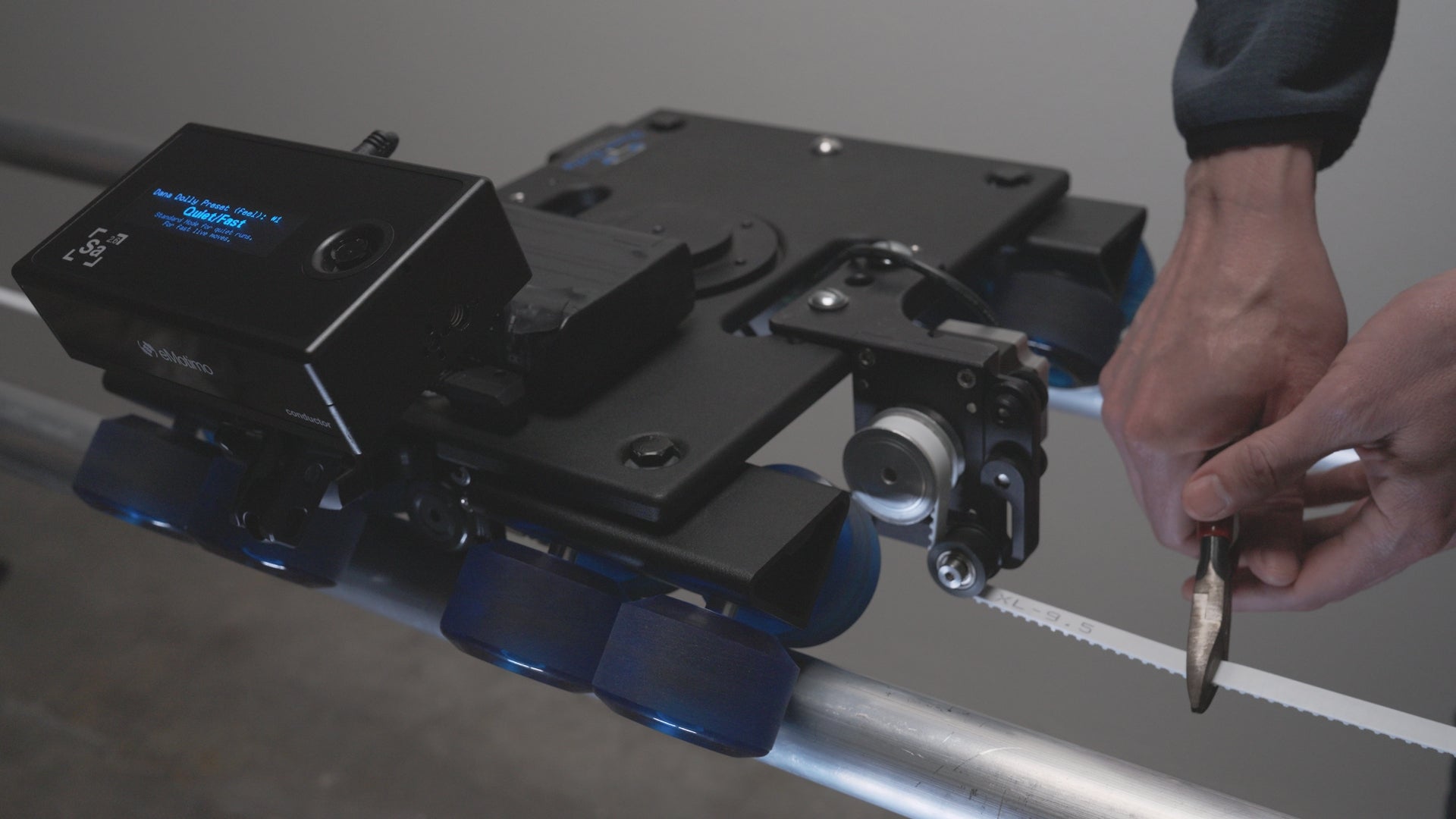

- Motorized Beltless Dana Dolly with track sensors
- All controlled axes (Pan/Tilt/Slide/Focus/Zoom) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 Motion Control Head
-
Dana Dolly Beltless Integration Kit with Spectrum Track Sensor
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
- Dana Dolly with round track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set for continuous loop (ping pong modes)
- Control Live / recall presets up to 30 feet away with gaming remote
Notes
This Architecture is incompatible with network control! The DDV3 track sensor plugs into the same i/o port on the ST4/ST4.3 as the network adapter. DDV3 track sensor and network adapter cannot be used concurrently on ST4/ST4.3

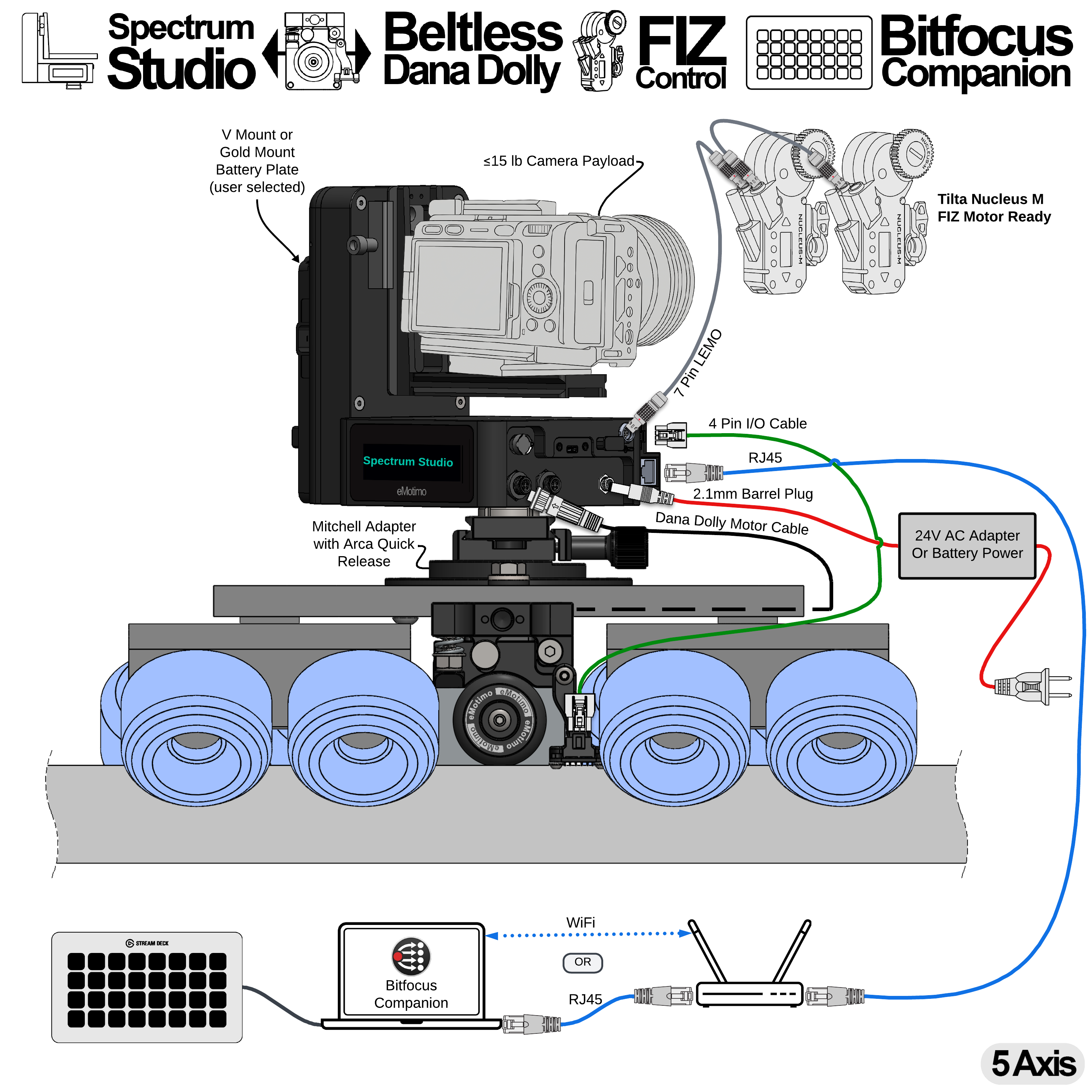

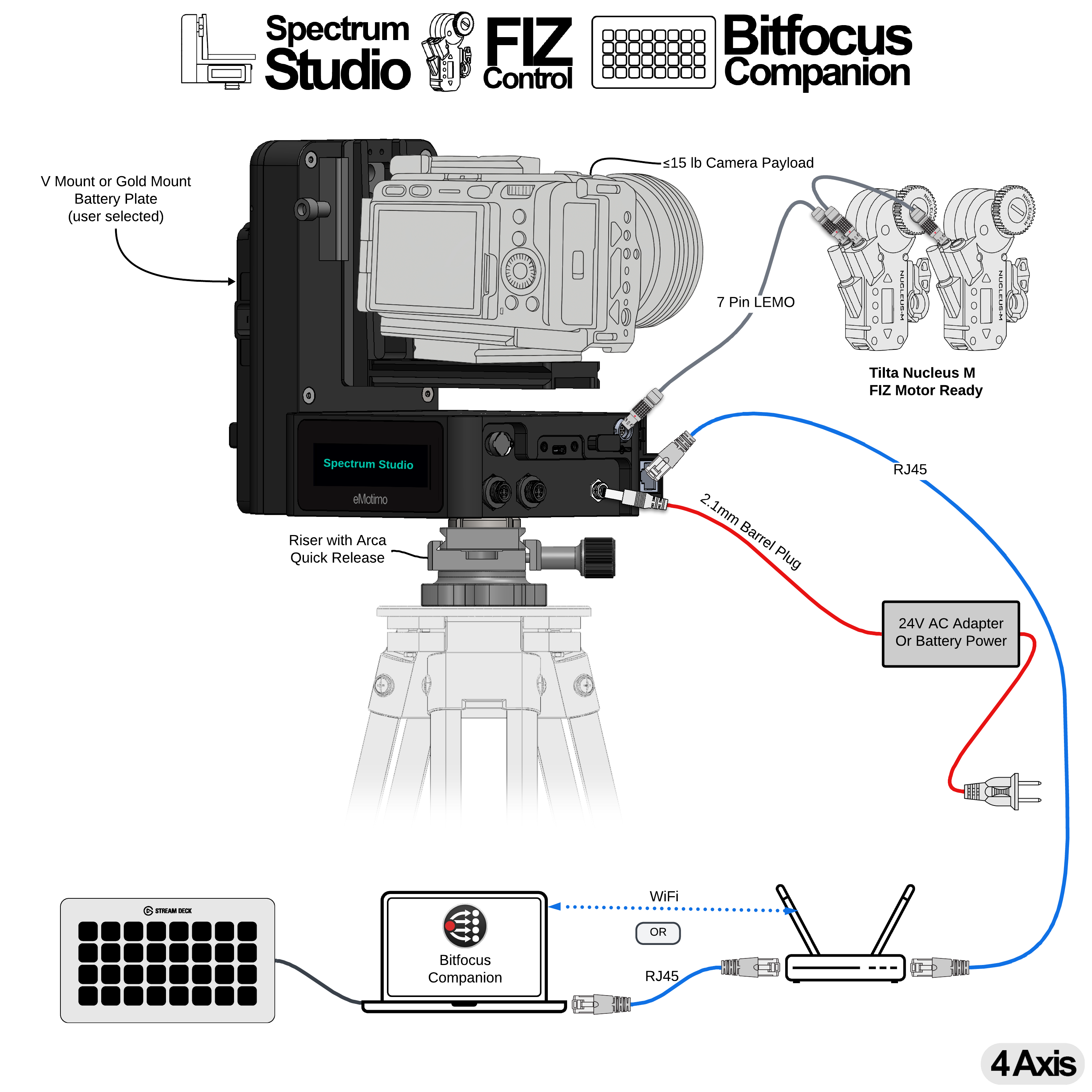

If you are interested in controlling a system like this over a network, consider our Dana Dolly belted solution or our upcoming Spectrum Studio (available in October 2025). For more information on Spectrum Studio, reach out to sales@emotimo.com or give us a call at (415) 684-8162 expressing your interest.
A10.2: Pan Tilt Slide
Features:
- Motorized Beltless Dana Dolly with track sensors
- All controlled axes (Pan/Tilt/Slide) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 Motion Control Head
-
Dana Dolly Beltless Integration Kit with Spectrum Track Sensor
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
-
Dana Dolly with round track
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set for continuous loop (ping pong modes)
- Control Live / recall presets up to 30 feet away with gaming remote
Notes
This Architecture is incompatible with network control! The DDV3 track sensor plugs into the same i/o port on the ST4/ST4.3 as the network adapter. DDV3 track sensor and network adapter cannot be used concurrently on ST4/ST4.3
If you are interested in controlling a system like this over a network, consider our Dana Dolly belted solution or our upcoming Spectrum Studio (available in October 2025). For more information on Spectrum Studio, reach out to sales@emotimo.com or give us a call at (415) 684-8162 expressing your interest.
