Spectrum ST4.3 + RigWheels Passport/Rail Dolly Integration

The eMotimo Spectrum ST4.3 is powerful multi-axis motion controller to move any camera/lens combo up to 15lbs.  It now pairs with a Passport/Rail Dolly from RigWheels along with up to 3 Tilta Nucleus M Motors.  Quickly control it Live, Run Programmed Moves, Set Cinematic Presets, and set up easy loops controlling for ultimate control of your camera.

What's Included

1) Spectrum ST4.3 7-axis motion control head (choose options) + Wireless gaming controller (PS5)
2) Passport/Rail Dolly Integration Kit
3)  Universal L-bracket and Forward Back Adjustment Plate & Clamp 100mm Camera Plate
4) Medium SKB Custom Hard Case/Foam
5) V Mount or Gold Mount Battery Plate (choose option)
6) AC Power - 12 volt DC adapter
7) Micro SD Card/Instructions
8) Quick Release Clamp for Spectrum mounting to Flat Plates

What's not included:

1) Passport/Rail Dolly, Stands.  Rail

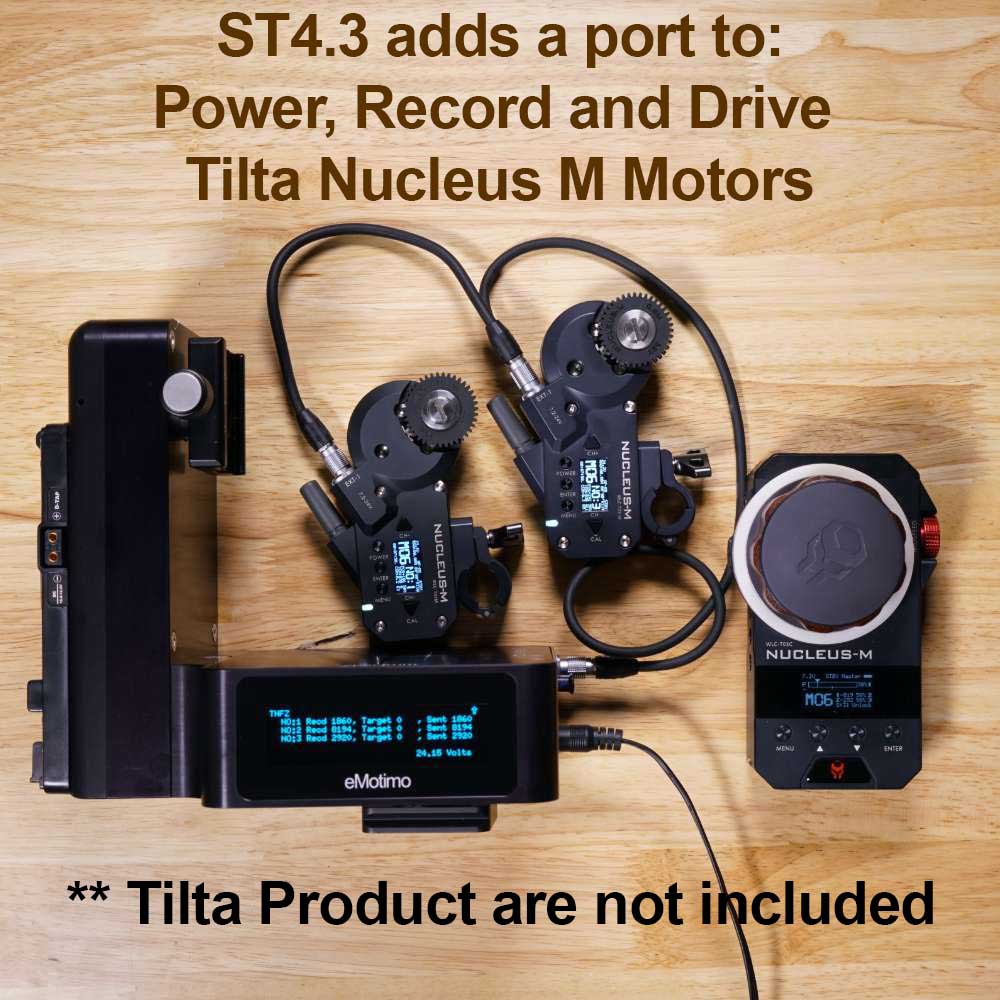

2) Focus Motor - We recommend you pair your ST4.3 to Tilta Nucleus M motors as they are fast, powerful, and inexpensive. Can be programmed in with or without Tilta Hand Controller.

NOTE: This configuration is incompatible with network control. If you would like network control, see Spectrum Studio

Movement:

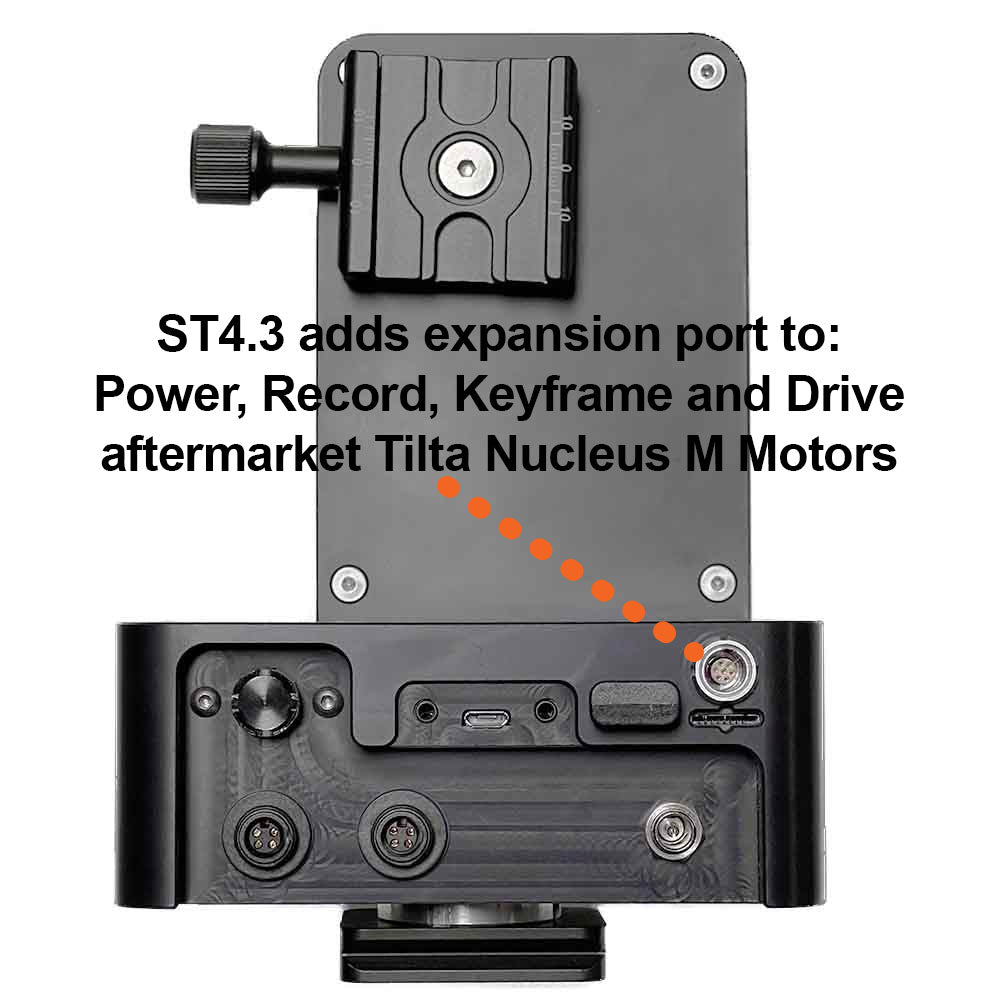

ST4.3 - 7 axis motion controller - Pan/Tilt/M3/M4 ports with up to 3 aftermarket Tilta Nucleus M Motors.

Size: 7.35" x 7.3" x 5"

Weight: 4.5 lbs.

Supports: 15 lbs.

Pan speed: up to 120 degrees/second

Tilt speed:  up to 60 degrees/second

Slider speed: Up to 1 foot /second - slow as you need

Powering specs: 12-24V DC. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive OR V Mount or Gold Mount pack based on selected battery plate.

Instruction Manual

Quick Start Guide

Instructional Videos
