Conductor SA2.6 + RigWheels Passport/RailDolly Integration + Rotator

The Conductor SA2.6 is a powerful motion controller for videographers, filmmakers, multicamera studios, and houses of worship. If you already own a DJI RS2, RS3, or RS4 gimbal, you can now easily combine it with linear motion and turntables to accomplish common motion control tasks like automated interviews controlled product shots, and even control multi-position camera moves over a network.

Unlock advanced motion with the Conductor SA2.6 + RigWheels Passport/RailDolly Integration + Rotator bundle. Build automated interviews and multi-position camera setups with ease. In addition to controlling a DJI RS2/3/4 gimbal, this system can slide PTZ cameras and heavy cinema rigs up to 40 lbs while coordinating pan to maintain framing. Giving individual shooters. multicamera studios, live-event teams, and houses of worship a high-precision, repeatable motion platform that can be triggered and controlled locally with the included gaming controller or from anywhere over a network.

What's Included

1) Conductor SA2.6 8-axis motion controller
2) RigWheels Passport/RailDolly Beltless Integration Kit
3) eMotimo Rotator
4) eMotimo RSI - Connects to DJI RS gimbals for Conductor control
5) Soft Case for Conductor SA2.6
6) AC Power - 12 volt DC adapter
7) Micro SD Card/Instructions
8) Wireless PS5 gaming controller

What's not included:

1) RigWheels Passport/RailDolly, Stands, Rail
2) Focus Motor - We recommend you pair your SA2.6 to Tilta Nucleus M motors as they are fast, powerful, and inexpensive. Can be programmed in with or without Tilta Hand Controller.
3) DJI RS2/RS3/RS4 gimbal

Controller:

SA2.6 - 8 axis motion controller - M1/M2 powered motor ports, DJI RS Pan/Tilt/Roll/(optional DJI focus motor) control, and up to 3 aftermarket Tilta Nucleus M Motors.

Camera Payload:
- Up to 10 lbs on a gimbal (gimbal limited)
- Up to 40 lbs without gimbal

Rotator: Seamlessly mounts underneath the RigWheels Passport/RailDolly with the included mounting hardware

Slider speed: Up to 1 foot /second - slow as you need

Powering specs: 12-24V DC. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive.

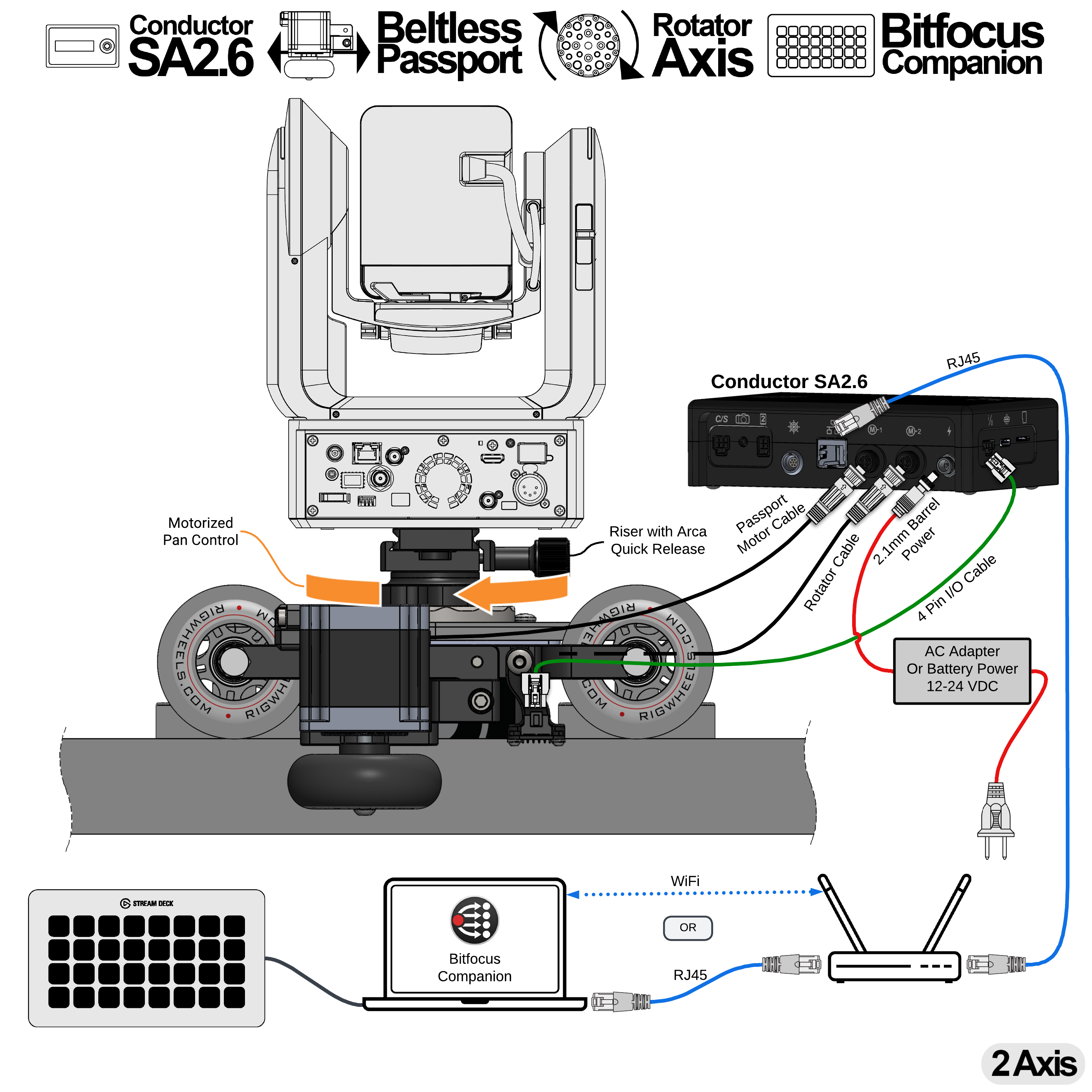

See how this kit connects together - Architecture A16

Conductor SA2.6 Instruction Manual

RigWheels Passport/RailDolly Integration Quick Start Guide

Rotator Quick Start Guide
