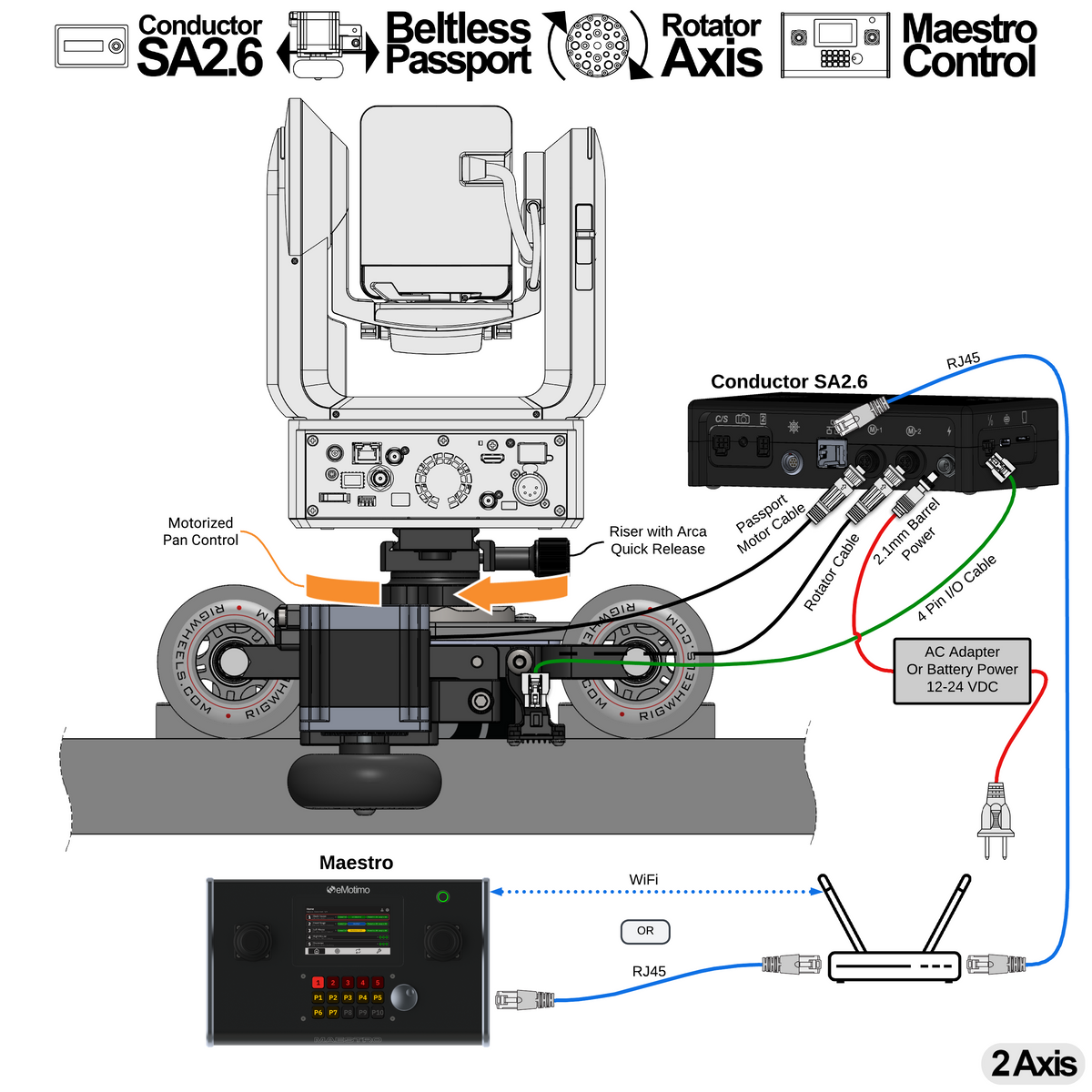

A16.1: PTZ Mover with AutoPan and Bitfocus Companion Control
Features:
- Position your PTZ remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless Rigwheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
What do you need from eMotimo?
-
PTZ Mover - Beltless RigWheels Passport with Autopan
- Riser with Clamp and 100mm Arca Plate (recommended for mounting PTZ to eMotimo Rotator)
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- PTZ of your choice
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Computer with Bitfocus Companion installed
- Elgato Stream Deck XL (recommended for Bitfocus Companion)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Bitfocus Companion
A16.2: PTZ Mover with AutoPan and Skaarhoj Control
Features:
- Position your PTZ remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
What do you need from eMotimo?
- PTZ Mover - Beltless RigWheels Passport with Autopan
- Riser with Clamp and 100mm Arca Plate (recommended for mounting PTZ to eMotimo Rotator)
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- PTZ of your choice
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Skaarhoj controller (PTZ Fly or PTZ Extreme recommended)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Skaarhoj Controllers
A16.3: AutoDolly with AutoPan and FIZ Control Controlled over a Network with Bitfocus Companion
Features:
- Position any camera remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
-
RigWheels Passport 2 with track
- Flat base tripod head with 3/8"-16 mounting hole
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Computer with Bitfocus Companion installed
- Elgato Stream Deck XL (recommended for Bitfocus Companion)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Bitfocus Companion
A16.4: AutoDolly with AutoPan and FIZ Control Controlled over a Network with Skaarhoj
Features:
- Position any camera remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with a Skaarhoj controller, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- Flat base tripod head with 3/8"-16 mounting hole
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Skaarhoj controller (PTZ Fly or PTZ Extreme recommended)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Skaarhoj controllers
A16.5: AutoDolly with AutoPan and FIZ Control with a Gaming Remote
Features:
- Motorized Beltless RigWheels Passport with track sensors
- Control and Keyframe Slide/Focus/Zoom
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- Flat base tripod head with 3/8"-16 mounting hole
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Camera
Steps to program:
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
A16.6: AutoDolly with AutoPan Controlled over a Network with Bitfocus Companion
Features:
- Position any camera remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
-
RigWheels Passport 2 with track
- Flat base tripod head with 3/8"-16 mounting hole
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Computer with Bitfocus Companion installed
- Elgato Stream Deck XL (recommended for Bitfocus Companion)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Bitfocus Companion
A16.7: AutoDolly with AutoPan Controlled over a Network with Skaarhoj
Features:
- Position any camera remotely, or run it in Ping Pong AutoDolly loop
- eMotimo Rotator pans in coordination with slide to maintain framing in a loop (AutoPan)
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with a Skaarhoj controller, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
-
RigWheels Passport 2 with track
- Flat base tripod head with 3/8"-16 mounting hole
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Skaarhoj controller (PTZ Fly or PTZ Extreme recommended)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Skaarhoj controllers
A16.8: AutoDolly with AutoPan and Gaming Remote
Features:
- Motorized Beltless RigWheels Passport with track sensors
- Control and Keyframe Slide/Focus/Zoom
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Control locally with the included gaming controller
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- Flat base tripod head with 3/8"-16 mounting hole
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Camera
Steps to program:
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
