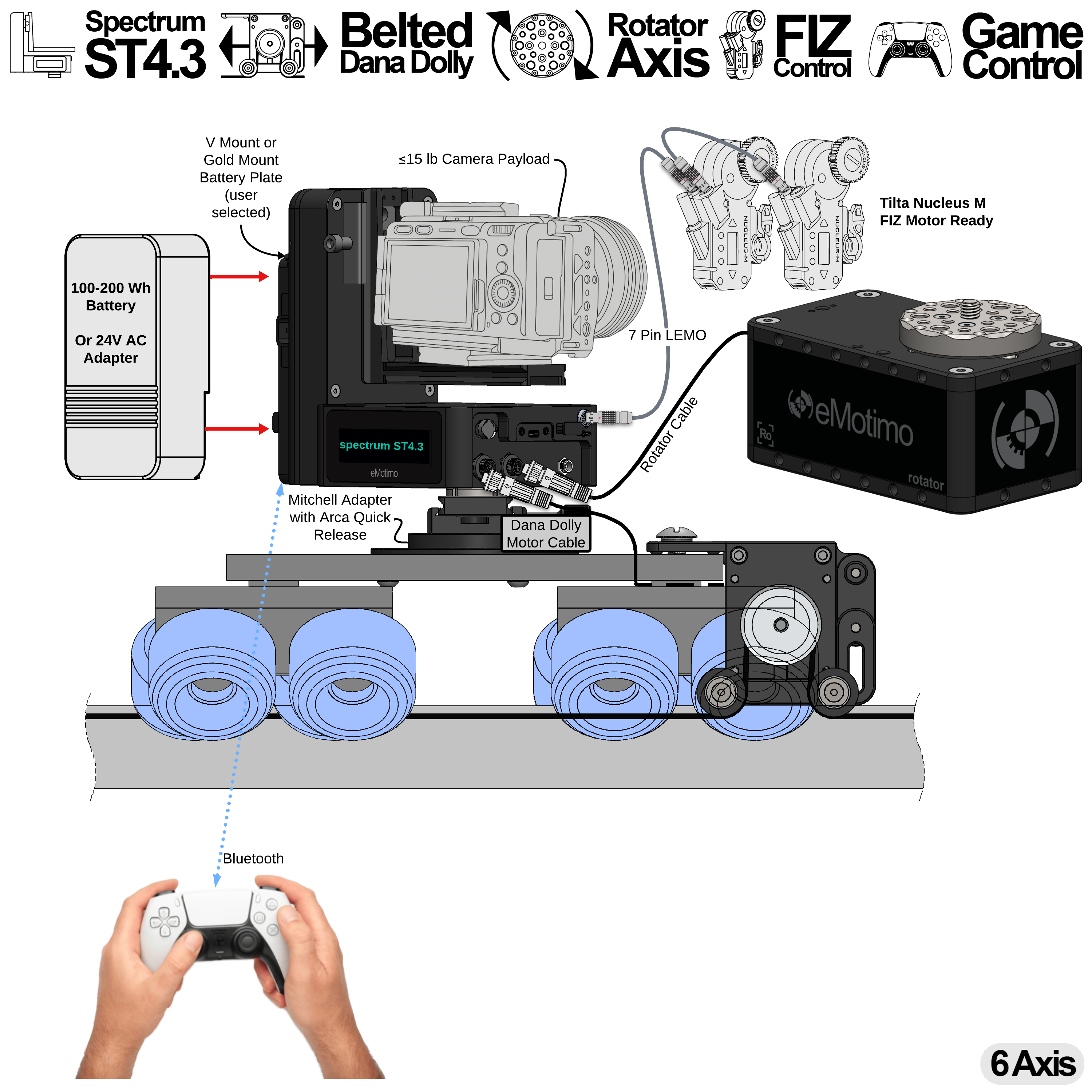

A17.1: Repeatable Tabletop Shooting with FIZ Control
Features:
- Automated Belt-Driven Dana Dolly kit for precise, millimeter-level repeatable shots
- Use the Rotator as a zero-backlash turntable capable of rotating objects weighing up to 100lbs
- All controlled axes (Pan/Tilt/Slide/Focus/Zoom/Rotator) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 + Dana Dolly Belted Integration
- eMotimo Rotator (available early November)
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
- Dana Dolly with round track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set GoTo presets to have all axes move to a preset position over a user defined timeframe
- Set up to 7 keyframed positions for complex motion control moves
- Record and playback live focus pulls with the Tilta Nucleus-M or Nucleus-M II hand controller to give your motion controlled shots a human feel
- Connect the Spectrum ST4.3 to a computer with Dragonframe to program detailed and complex moves
A17.2: Run and Gun Tabletop Shooting with FIZ Control
Features:
- Automated Beltless Dana Dolly kit for quick setup in fast-paced shooting environments
- Use the Rotator as a zero-backlash turntable capable of rotating objects weighing up to 100lbs
- All controlled axes (Pan/Tilt/Slide/Focus/Zoom/Rotator) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 Motion Control Head
- Dana Dolly Beltless Integration Kit with Spectrum Track Sensor
- eMotimo Rotator (available early November)
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
- Dana Dolly with round track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set GoTo presets to have all axes move to a preset position over a user defined timeframe
- Set up to 7 keyframed positions for complex motion control moves
- Record and playback live focus pulls with the Tilta Nucleus-M or Nucleus-M II hand controller to give your motion controlled shots a human feel
- Connect the Spectrum ST4.3 to a computer with Dragonframe to program detailed and complex moves
A17.3: Repeatable Tabletop Shooting
Features:
- Automated Belt-Driven Dana Dolly kit for precise, millimeter-level repeatable shots
- Use the Rotator as a zero-backlash turntable capable of rotating objects weighing up to 100lbs
- All controlled axes (Pan/Tilt/Slide/Rotator) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 + Dana Dolly Belted Integration
- eMotimo Rotator (available early November)
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
-
Dana Dolly with round track
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set GoTo presets to have all axes move to a preset position over a user defined timeframe
- Set up to 7 keyframed positions for complex motion control moves
- Connect the Spectrum ST4.3 to a computer with Dragonframe to program detailed and complex moves
A17.4: Run and Gun Tabletop Shooting
Features:
- Automated Beltless Dana Dolly kit for quick setup in fast-paced shooting environments
- Use the Rotator as a zero-backlash turntable capable of rotating objects weighing up to 100lbs
- All controlled axes (Pan/Tilt/Slide/Rotator) are coordinated
- Battery operated or AC powered
- Supports camera payloads up to 15lbs
- Control locally with the included gaming controller
What do you need from eMotimo?
- Spectrum ST4.3 Motion Control Head
- eMotimo Rotator (available early November)
- Dana Dolly Beltless Integration Kit with Spectrum Track Sensor
- Mitchell Adapter with Arca Quick Release (recommended for mounting Spectrum ST4.3 to Dana Dolly)
What else do you need from Third Party to fully support this configuration?
-
Dana Dolly with round track
- V Mount/Gold Mount Battery with DTAP out for battery operation
Control Options
- Set GoTo presets to have all axes move to a preset position over a user defined timeframe
- Set up to 7 keyframed positions for complex motion control moves
- Connect the Spectrum ST4.3 to a computer with Dragonframe to program detailed and complex moves
