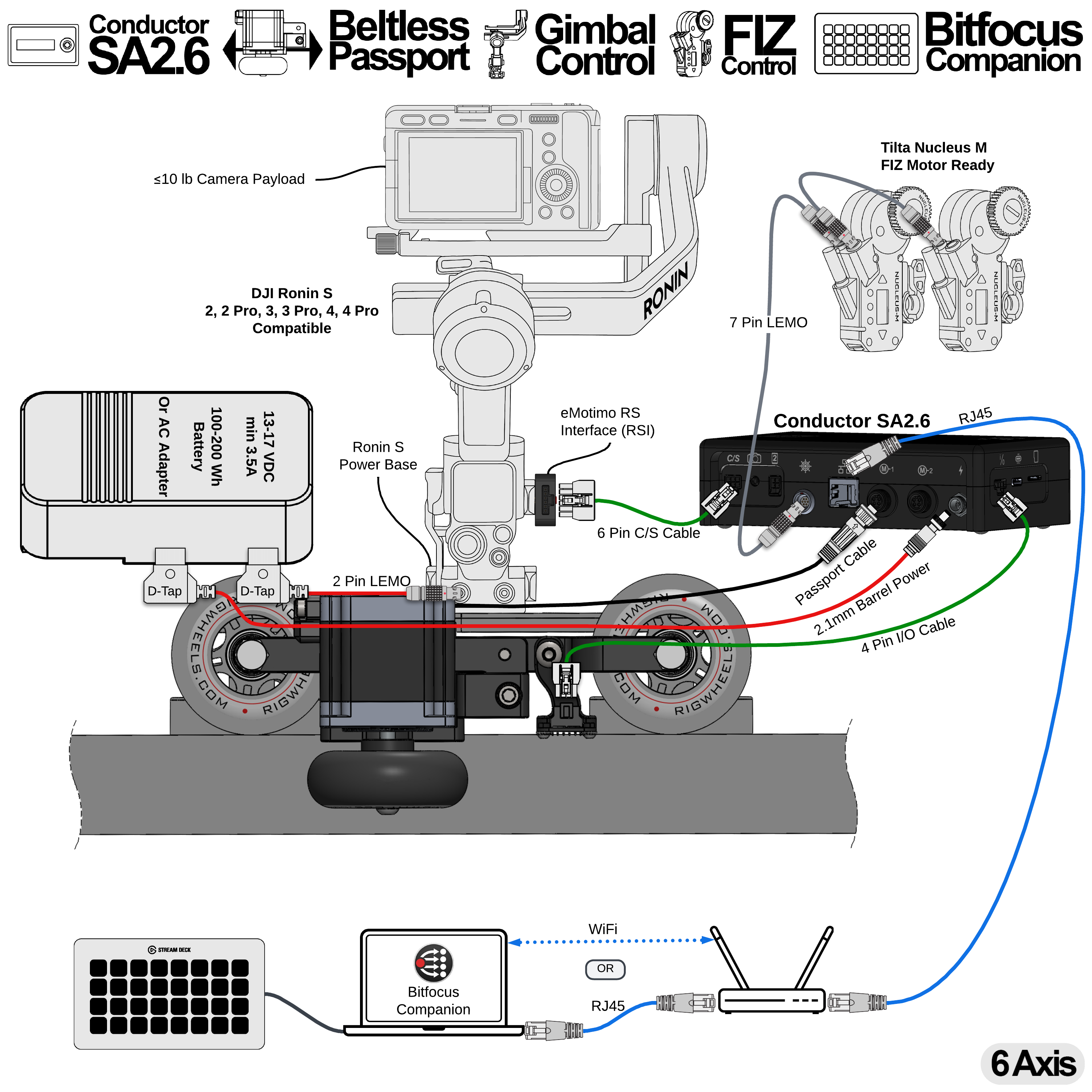

A14.1: Control RigWheels Passport, Gimbal, and FIZ Motors Over a Network with Bitfocus Companion
Features:
- Motorized Beltless RigWheels Passport with track sensors
- All controlled Axis (Pan/Tilt/Roll/Slide/Focus/Zoom) are coordinated
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 10lbs (RS Gimbal Limited)
- Controls DJI RS2/3/4 Pro gimbal
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- DJI RS 4 Pro Gimbal (RS 2, 2 Pro, 3, 3 Pro, 4, and 4 Pro supported)
- Power Base for Gimbal (we recommend SmallRig Power Supply Base Plate for DJI RS)
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Gimbal/Camera
- Computer with Bitfocus Companion installed
- Elgato Stream Deck XL (recommended for Bitfocus Companion)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Bitfocus Companion
A14.2: Control RigWheels Passport, Gimbal, and FIZ Motors Over a Network with Skaarhoj
Features:
- Motorized Beltless RigWheels Passport with track sensors
- All controlled Axis (Pan/Tilt/Roll/Slide/Focus/Zoom) are coordinated
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with a Skaarhoj controller, or locally with the included gaming controller
- Battery operated or AC powered
- Supports camera payloads up to 10lbs (RS Gimbal Limited)
- Controls DJI RS2/3/4 Pro gimbal
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- DJI RS 4 Pro Gimbal (RS 2, 2 Pro, 3, 3 Pro, 4, and 4 Pro supported)
- Power Base for Gimbal (we recommend SmallRig Power Supply Base Plate for DJI RS)
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Gimbal/Camera
- Skaarhoj controller (PTZ Fly or PTZ Extreme recommended)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Skaarhoj controllers
A14.3: Control a RigWheels Passport, a Gimbal, and FIZ Motors with a Gaming Remote
Features:
- Motorized Beltless RigWheels Passport with track sensors
- All controlled Axis (Pan/Tilt/Roll/Slide/Focus/Zoom) are coordinated
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Battery operated or AC powered
- Supports camera payloads up to 10lbs (RS Gimbal Limited)
- Controls DJI RS2/3/4 Pro gimbal
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- DJI RS 4 Pro Gimbal (RS 2, 2 Pro, 3, 3 Pro, 4, and 4 Pro supported)
- Power Base for Gimbal (we recommend SmallRig Power Supply Base Plate for DJI RS)
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Gimbal/Camera
Steps to program:
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
A14.4: PTZ Mover with Bitfocus Companion Control
Features:
- Position your PTZ remotely, or run it in Ping Pong AutoDolly loop
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
What do you need from eMotimo?
-
Conductor SA2.6 with RSI + RigWheels Passport Beltless Integration
- Riser with Clamp and 100mm Arca Plate (recommended for mounting PTZ to eMotimo Rotator)
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- PTZ of your choice
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Computer with Bitfocus Companion installed
- Elgato Stream Deck XL (recommended for Bitfocus Companion)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Bitfocus Companion
A14.5: PTZ Mover with Skaarhoj Control
Features:
- Position your PTZ remotely, or run it in Ping Pong AutoDolly loop
- Motorized Beltless RigWheels Passport with track sensors
-
Cinematic Studio Ready
- Live Control
- Set and recall 30 timed, cinematic Presets
- Set and recall 8 timed, cinematic Loops (Ping Pong)
- Power On Positioning Capable - saves time by auto-calibrating and loading presets and loops at startup.
- Control over a wired network with Bitfocus Companion, or locally with the included gaming controller
- Battery operated or AC powered
What do you need from eMotimo?
- Conductor SA2.6 with RSI + RigWheels Passport Beltless Integration
- Riser with Clamp and 100mm Arca Plate (recommended for mounting PTZ to eMotimo Rotator)
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- PTZ of your choice
- V Mount/Gold Mount Battery with DTAP out for battery operation OR AC power solution for Conductor SA2.6 and PTZ
- Skaarhoj controller (PTZ Fly or PTZ Extreme recommended)
Steps to program:
We recommend everyone starts with the gaming controller to get a basic understanding of the system controls.
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
Check out this guide for setting up Skaarhoj Controllers
A14.6: AutoDolly with lens control (Zolly)
Features:
- Motorized Beltless RigWheels Passport with track sensors
- Control and Keyframe Slide/Focus/Zoom
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Powers and Controls Tilta Nucleus-M and Nucleus-M II FIZ motors
- Control locally with the included gaming controller
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
- RigWheels Passport 2 with track
- Tilta Nucleus-M or Nucleus-M II motors and cables x2
- Tripod head with compatible mounting adapter to RigWheels Passport
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Camera
Steps to program:
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
A14.7: AutoDolly
Features:
- Motorized Beltless RigWheels Passport with track sensors
- Control and Keyframe Slide
- Battery operated or AC powered
- Supports camera payloads up to 30lbs
- Control locally with the included gaming controller
What do you need from eMotimo?
What else do you need from Third Party to fully support this configuration?
-
RigWheels Passport 2 with track
- Tripod head with compatible mounting adapter to RigWheels Passport
- V Mount/Gold Mount Battery with DTAP out for battery operation OR 14-16V DC power for Camera
Steps to program:
- Power up Conductor
- Guided - Ping Pong
- Set Start Point
- Set End Point
- Optional - Set Speed
- Go.
