Spectrum ST4.3 + Passport/Rail Dolly Integration
Coming Soon - August 2025! -
CLICK "Sold Out - Notify me when it's available" BUTTON TO GET UPDATES AND PRESALE DISCOUNTS

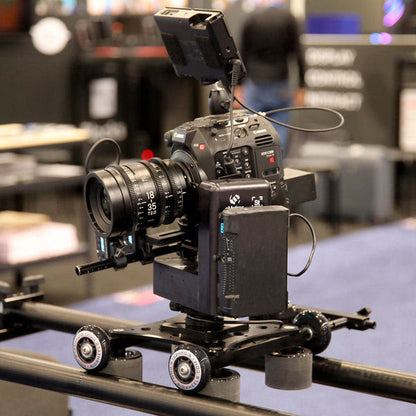

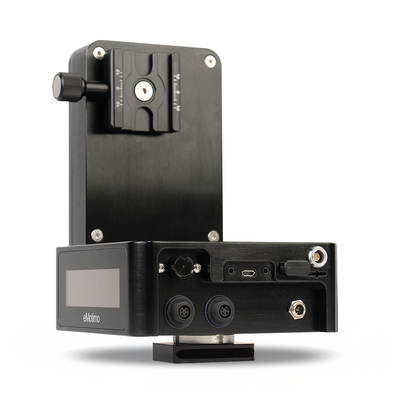

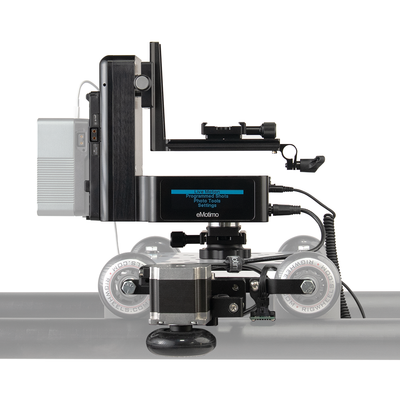

The eMotimo Spectrum ST4.3 is powerful multi-axis motion controller to move any camera/lens combo up to 15lbs. It now pairs with a Passport/Rail Dolly from Rigwheels, along with 2 Tilta Nucleus M Motors. Quickly control it Live, Run Programmed Moves, Set Cinematic Presets, and set up easy loops controlling for ultimate control of your camera.

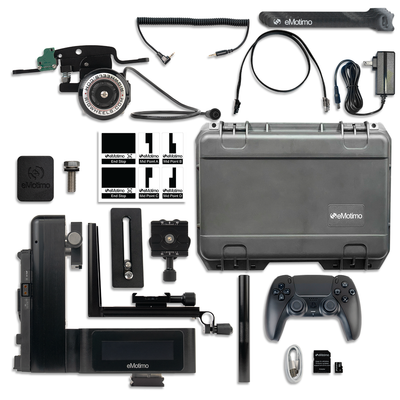

What's Included

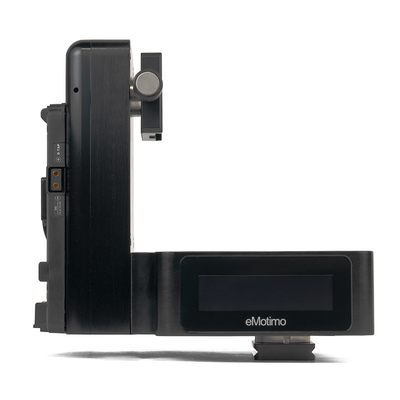

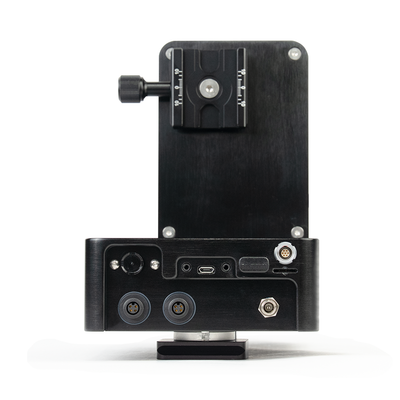

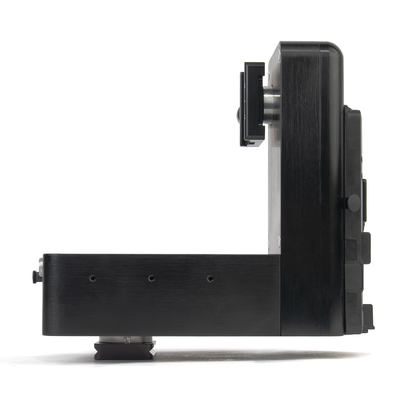

1) Spectrum ST4.3 7-axis motion control head (choose options) + Wireless gaming controller (PS5)
2) Passport/Rail Dolly Integration Kit
3) Universal L-bracket and Forward Back Adjustment Plate & Clamp 100mm Camera Plate
4) Medium SKB Custom Hard Case/Foam

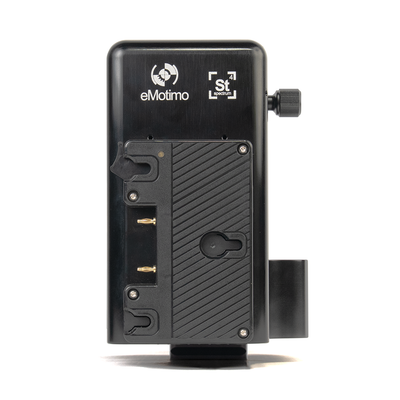

5) VMount or Gold Mount Battery Plate (choose option)
6) AC Power Adapter - 24 volt DC high current adapter
7) uSD Card/Instructions
8) Quick Release Clamp for Spectrum mounting to Flat Plates
What's not included:
1) Passport / Rail Dolly, Stands. Rail

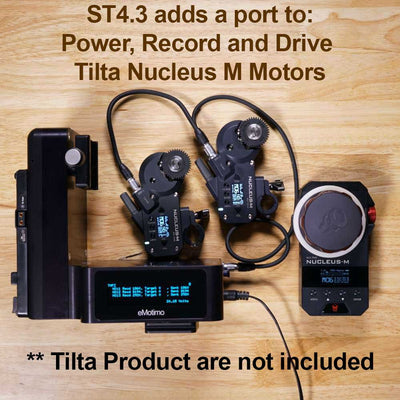

2) Focus Motor - We recommend you pair your ST4.3 to Tilta Nucleus M motors as they are fast, powerful, and inexpensive. Can be programmed in with or without Tilta Hand Controller.
Movement:

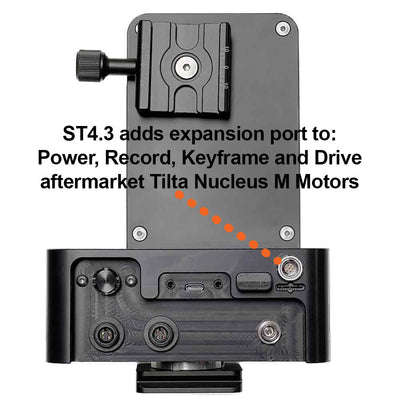

ST4.3 - 7 axis motion controller - Pan/Tilt/M3/M4 ports with up to 3 aftermarket Tilta Nucleus M Motors.
Size: 7.35" x 7.3" x 5"
Weight: 4.5 lbs.
Supports: 15 lbs.
Pan speed: up to 120 degrees/second
Tilt speed: up to 60 degrees/second
Slider speed: Up to 1 foot /second - slow as you need
Powering specs: 12-24V DC. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector – center positive OR Vmount or Gold Mount pack based on selected battery plate.

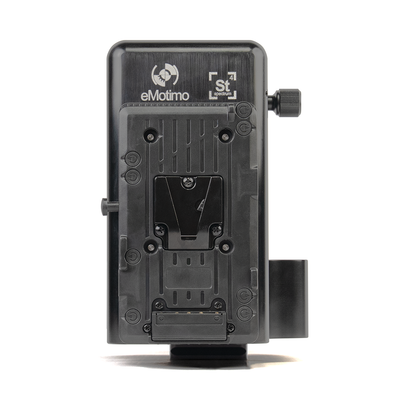

- Battery Plate:
- ST4.3 - VMount
